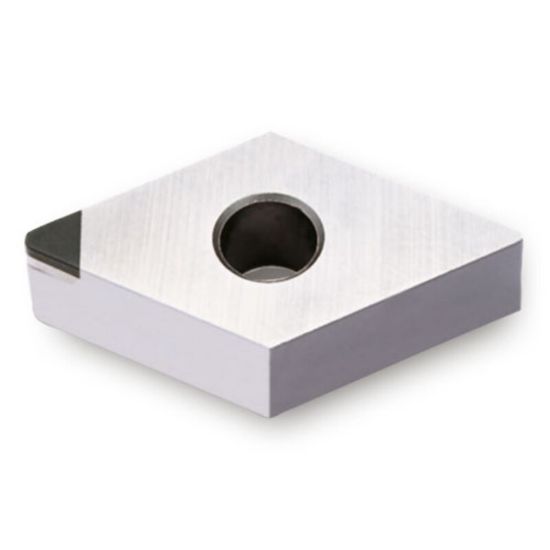

Picture of INGERSOLL DNGA432LS TB7015 Turning Insert 55.0° 0.031 Corner Radius

INGERSOLL DNGA432LS TB7015 Turning Insert 55.0° 0.031 Corner Radius

ANSI: DNGA432LS TB7015

ISO: DNGA150408LS TB7015

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6210525
Delivery date: 3-5 days
$51.52

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Grade and Coating Description

General machining of gray cast iron. Turning and milling of gray cast iron. Severe interrupt turning and milling of hardened steel.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Insert Type Negative
Insert Application Roughing, Semi Finishing
Application Turning Insert
Made In USA No
Package Size 10
Grade TB7015
Insert/Tool Insert
Dimensional Specifications
Insert Size Ic 15 "43"
Corner Radius 0.0310 0.79MM
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Cutting Edge Mat CBN
Insert Style DN
