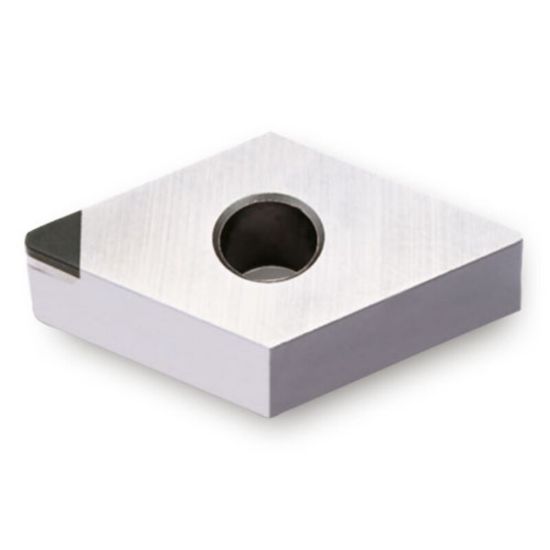

Picture of INGERSOLL DNGA432LS KB90 Turning Insert 55.0° 0.031 Corner Radius

INGERSOLL DNGA432LS KB90 Turning Insert 55.0° 0.031 Corner Radius

ANSI: DNGA432LS KB90

ISO: DNGA150408LS KB90

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5400851
Delivery date: 3-5 days
$51.52

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Grade and Coating Description

Solid CBN grade with excellent impact resistance for high speed machining of cast iron and rough to medium machining of hardened steels

Products specifications
Attribute name Attribute value
General Product Information
Application Turning Insert
Package Size 10
Insert Application Semi Finishing, Roughing
Grade KB90
Insert/Tool Insert
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Rating Ductile Iron, Gray Iron
Insert Size Ic 15 "43"
Corner Radius 0.0310 0.79MM
Cutting & Machining Properties
Cutting Edge Mat CBN
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
