  • INGERSOLL DN6H-60R01 Milling Cutter 45.0° 6.000 Shell Arbor 1.5000 12 Flute 0.235 Max DOC 2.000 OAL

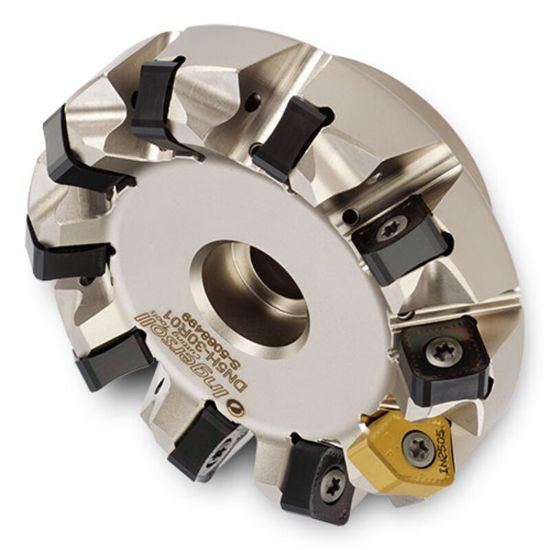

Picture of INGERSOLL DN6H-60R01 Milling Cutter 45.0° 6.000 Shell Arbor 1.5000 12 Flute 0.235 Max DOC 2.000 OAL

INGERSOLL DN6H-60R01 Milling Cutter 45.0° 6.000 Shell Arbor 1.5000 12 Flute 0.235 Max DOC 2.000 OAL

ANSI: DN6H-60R01

ISO: DN6H-60R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3025640
Delivery date: 3-5 days
$1,316.00

Details

FACE MILL WITH 8 SIDED SQUARE, GREAT FOR GENERAL USAGE. HEAVY CUTTING, VERY THICK INSERT.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Roughing, Semi Finishing
Application Face Milling
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Tool Material Steel
Insert Size Ic 12
Cutter Dia 6.0000 152.40MM
Cut Dia Max 6.5700 166.88MM
Machine Side Connection Size 1.5000 38.10MM
Depth Of Cut Max 0.2350
Cut Dia Min 6.0000 152.40MM
Flutes/Inserts 12
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SN
Coolant Thru No
