  • INGERSOLL DN6H-40R01 Milling Cutter 45.0° 4.000 Shell Arbor 1.5000 8 Flute Coolant 0.235 Max DOC 2.375 OAL

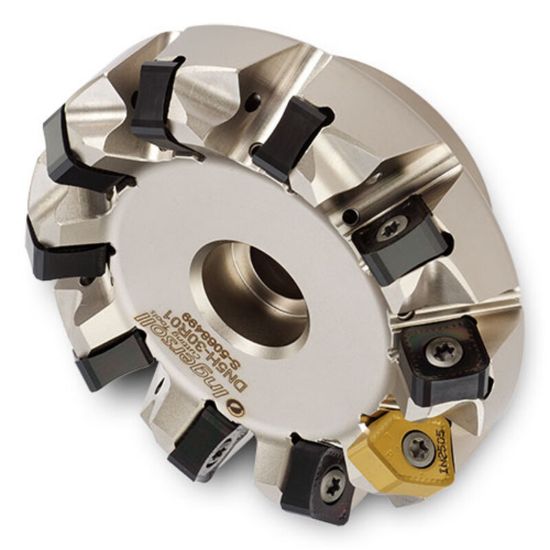

Picture of INGERSOLL DN6H-40R01 Milling Cutter 45.0° 4.000 Shell Arbor 1.5000 8 Flute Coolant 0.235 Max DOC 2.375 OAL

INGERSOLL DN6H-40R01 Milling Cutter 45.0° 4.000 Shell Arbor 1.5000 8 Flute Coolant 0.235 Max DOC 2.375 OAL

ANSI: DN6H-40R01

ISO: DN6H-40R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3025638
Delivery date: 3-5 days
$856.80

Details

FACE MILL WITH 8 SIDED SQUARE, GREAT FOR GENERAL USAGE. HEAVY CUTTING, VERY THICK INSERT.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert Application Semi Finishing, Roughing, Finishing
Application Face Milling
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 4.0000 101.60MM
Overall Len 2.3750 60.33MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Flutes/Inserts 8
Cut Dia Min 4.0000 101.60MM
Insert Size Ic 12
Cut Dia Max 4.5700 116.08MM
Machine Side Connection Size 1.5000 38.10MM
Depth Of Cut Max 0.2350
Cutting & Machining Properties
Insert Style SN
Insert Shape/Cutter Pocket Shape Square
Coolant Thru Yes
