  • INGERSOLL DN6H-30R01 Milling Cutter 45.0° 3.000 Shell Arbor 1.0000 7 Flute Coolant 0.235 Max DOC 1.750 OAL

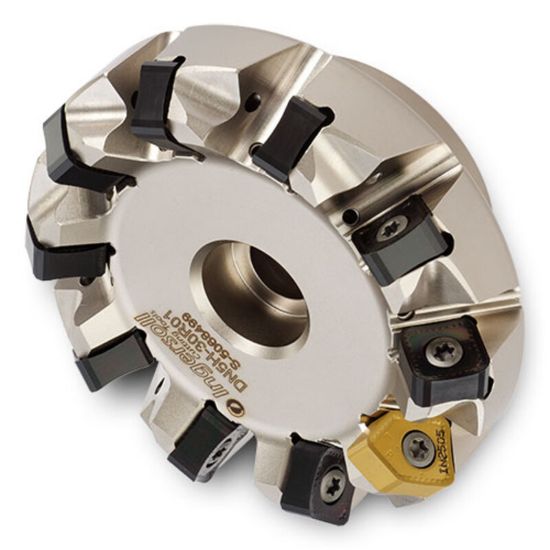

Picture of INGERSOLL DN6H-30R01 Milling Cutter 45.0° 3.000 Shell Arbor 1.0000 7 Flute Coolant 0.235 Max DOC 1.750 OAL

INGERSOLL DN6H-30R01 Milling Cutter 45.0° 3.000 Shell Arbor 1.0000 7 Flute Coolant 0.235 Max DOC 1.750 OAL

ANSI: DN6H-30R01

ISO: DN6H-30R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3025636
Delivery date: 3-5 days
$697.20

Details

FACE MILL WITH 8 SIDED SQUARE, GREAT FOR GENERAL USAGE. HEAVY CUTTING, VERY THICK INSERT.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Insert Application Semi Finishing, Roughing, Finishing
Insert Type Negative
Made In USA No
Application Face Milling
Dimensional Specifications
Insert Size Ic 12
Flutes/Inserts 7
Tool Material Steel
Overall Len 1.7500 44.45MM
Depth Of Cut Max 0.2350
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.0000 25.40MM
Cutter Dia 3.0000 76.20MM
Cut Dia Max 3.5700 90.68MM
Cutting & Machining Properties
Insert Style SN
Insert Shape/Cutter Pocket Shape Square
Coolant Thru Yes
