  • INGERSOLL DN6H-25R01 Milling Cutter 45.0° 2.500 Shell Arbor 1.0000 6 Flute Coolant 0.235 Max DOC 1.750 OAL

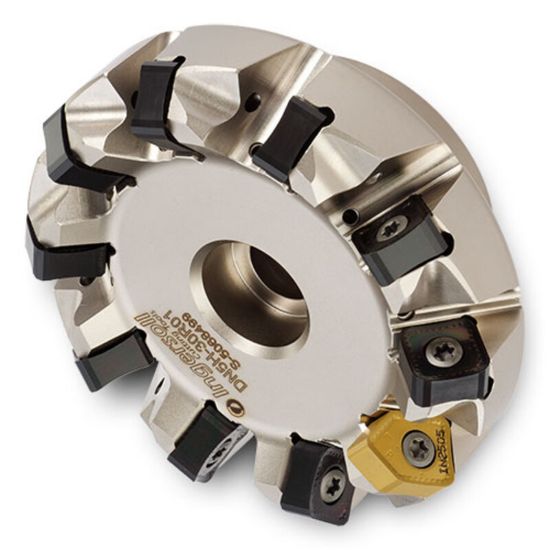

Picture of INGERSOLL DN6H-25R01 Milling Cutter 45.0° 2.500 Shell Arbor 1.0000 6 Flute Coolant 0.235 Max DOC 1.750 OAL

INGERSOLL DN6H-25R01 Milling Cutter 45.0° 2.500 Shell Arbor 1.0000 6 Flute Coolant 0.235 Max DOC 1.750 OAL

ANSI: DN6H-25R01

ISO: DN6H-25R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3025634
Delivery date: 3-5 days
$599.20

Details

FACE MILL WITH 8 SIDED SQUARE, GREAT FOR GENERAL USAGE. HEAVY CUTTING, VERY THICK INSERT.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Negative
Insert Application Roughing, Finishing, Semi Finishing
Made In USA No
Shipping State Illinois
Package Size 1
Application Face Milling
Dimensional Specifications
Depth Of Cut Max 0.2350
Tool Material Steel
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 1.0000 25.40MM
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 12
Flutes/Inserts 6
Overall Len 1.7500 44.45MM
Cutter Dia 2.5000 63.50MM - 2-1/2
Cut Dia Max 3.0700 77.98MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SN
Coolant Thru Yes
