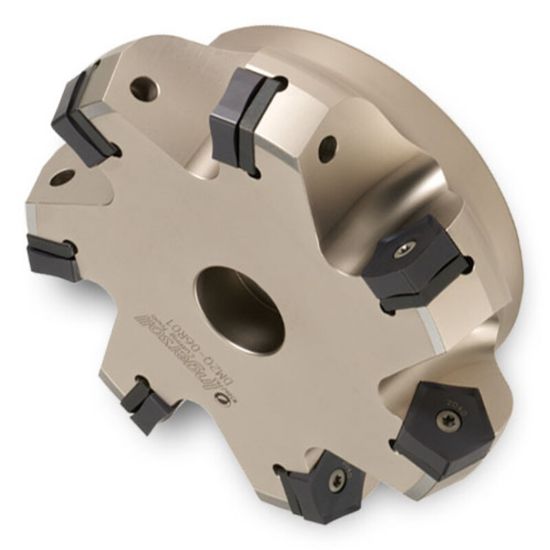

Picture of INGERSOLL DM2Q-08R01 Milling Cutter 70.0° 8.000 Shell Arbor 2.5000 8 Flute 0.47 Max DOC 2.375 OAL

INGERSOLL DM2Q-08R01 Milling Cutter 70.0° 8.000 Shell Arbor 2.5000 8 Flute 0.47 Max DOC 2.375 OAL

ANSI: DM2Q-08R01

ISO: DM2Q-08R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3030223
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Package Size 1
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Application Face Milling
Dimensional Specifications
Insert Size Ic 17
Depth Of Cut Max 0.4700
Cut Dia Min 8.0000 203.20MM
Flutes/Inserts 8
Cutter Dia 8.0000 203.20MM
Cut Dia Max 8.4400 214.38MM
Overall Len 2.3750 60.33MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Machine Side Connection Size 2.5000 63.50MM
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Pentagonal
Insert Style PN
