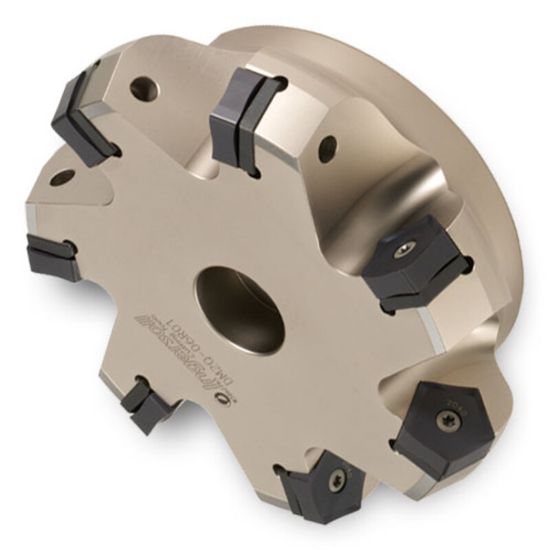

Picture of INGERSOLL DM2Q-06R01 Milling Cutter 70.0° 6.000 Shell Arbor 1.5000 7 Flute 0.47 Max DOC 2.375 OAL

INGERSOLL DM2Q-06R01 Milling Cutter 70.0° 6.000 Shell Arbor 1.5000 7 Flute 0.47 Max DOC 2.375 OAL

ANSI: DM2Q-06R01

ISO: DM2Q-06R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3030222
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Application Face Milling
Package Size 1
Dimensional Specifications
Cutter Dia 6.0000 152.40MM
Insert Size Ic 17
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Cut Dia Min 6.0000 152.40MM
Cut Dia Max 6.4400 163.58MM
Overall Len 2.3750 60.33MM
Depth Of Cut Max 0.4700
Machine Side Connection Size 1.5000 38.10MM
Flutes/Inserts 7
Cutting & Machining Properties
Coolant Thru No
Insert Style PN
Insert Shape/Cutter Pocket Shape Pentagonal
