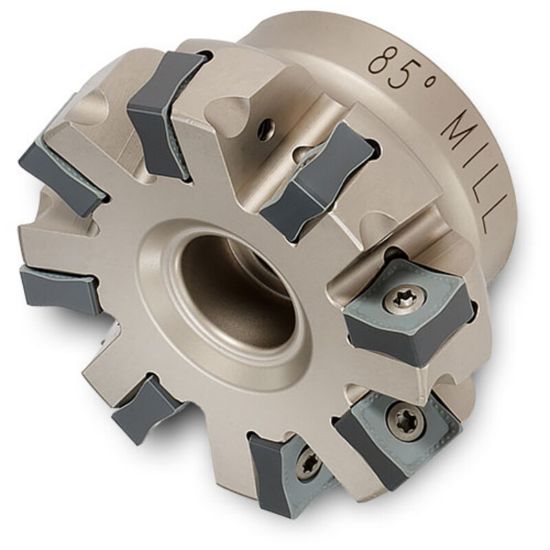

Picture of INGERSOLL DL6T-25R01 Milling Cutter 85.5° 2.500 Shell Arbor 0.7500 6 Flute 0.47 Max DOC 1.570 OAL

INGERSOLL DL6T-25R01 Milling Cutter 85.5° 2.500 Shell Arbor 0.7500 6 Flute 0.47 Max DOC 1.570 OAL

ANSI: DL6T-25R01

ISO: DL6T-25R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2911808
Delivery date: 3-5 days
$606.67

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Application Face Milling
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Cutter Dia 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 0.7500 19.05MM
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 2.5000 63.50MM - 2-1/2
Flutes/Inserts 6
Depth Of Cut Max 0.4700
Insert Size Ic 13
Cut Dia Max 2.6100 66.29MM
Tool Material Steel
Overall Len 1.5700 39.88MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Coolant Thru No
Insert Style SN
