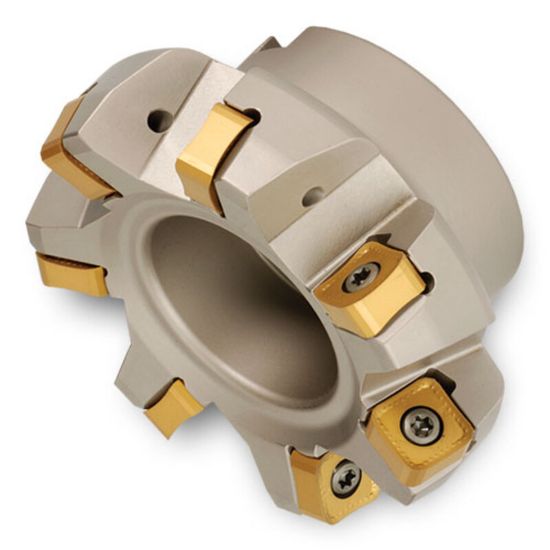

Picture of INGERSOLL DL6H-25R01 Milling Cutter 75.0° 2.500 Shell Arbor 1.0000 6 Flute Coolant 1.750 OAL

INGERSOLL DL6H-25R01 Milling Cutter 75.0° 2.500 Shell Arbor 1.0000 6 Flute Coolant 1.750 OAL

ANSI: DL6H-25R01

ISO: DL6H-25R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3025644
Delivery date: 3-5 days
$599.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Application Face Milling
Insert/Tool Tool
Dimensional Specifications
Overall Len 1.7500 44.45MM
Insert Size Ic 12
Cutter Dia 2.5000 63.50MM - 2-1/2
Cut Dia Min 2.5000 63.50MM - 2-1/2
Cut Dia Max 2.8000 71.12MM
Machine Side Connection Size 1.0000 25.40MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Flutes/Inserts 6
Cutting & Machining Properties
Coolant Thru Yes
Insert Style SN
Insert Shape/Cutter Pocket Shape Square
