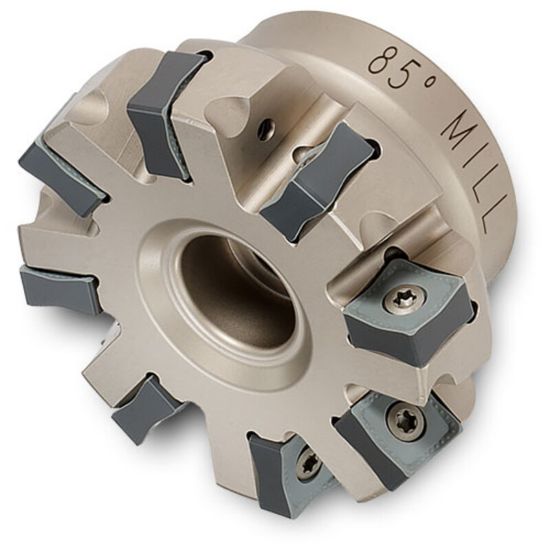

Picture of INGERSOLL DL5T-50R01 Milling Cutter 85.5° 5.000 Shell Arbor 1.5000 13 Flute 0.47 Max DOC 2.375 OAL

INGERSOLL DL5T-50R01 Milling Cutter 85.5° 5.000 Shell Arbor 1.5000 13 Flute 0.47 Max DOC 2.375 OAL

ANSI: DL5T-50R01

ISO: DL5T-50R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2911811
Delivery date: 3-5 days
$1,129.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Face Milling
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Tool Material Steel
Cutter Dia 5.0000 127.00MM
Depth Of Cut Max 0.4700
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Max 5.1100 129.79MM
Overall Len 2.3750 60.33MM
Flutes/Inserts 13
Insert Size Ic 13
Machine Side Connection Size 1.5000 38.10MM
Cut Dia Min 5.0000 127.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SN
Coolant Thru No
