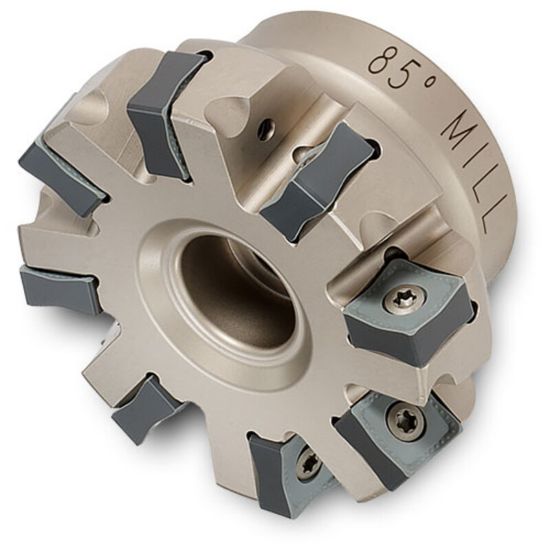

Picture of INGERSOLL DL5T-40R01 Milling Cutter 85.5° 4.000 Shell Arbor 1.5000 10 Flute 0.47 Max DOC 2.375 OAL

INGERSOLL DL5T-40R01 Milling Cutter 85.5° 4.000 Shell Arbor 1.5000 10 Flute 0.47 Max DOC 2.375 OAL

ANSI: DL5T-40R01

ISO: DL5T-40R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2911810
Delivery date: 3-5 days
$989.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Package Size 1
Insert Type Negative
Made In USA No
Shipping State Illinois
Application Face Milling
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 4.0000 101.60MM
Overall Len 2.3750 60.33MM
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 13
Cut Dia Min 4.0000 101.60MM
Machine Side Connection Size 1.5000 38.10MM
Cut Dia Max 4.1100 104.39MM
Tool Material Steel
Depth Of Cut Max 0.4700
Flutes/Inserts 10
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Square
Insert Style SN
