  • INGERSOLL DL5H-60R01 Milling Cutter 75.0° 6.000 Shell Arbor 1.5000 20 Flute 0.256 Max DOC 2.000 OAL

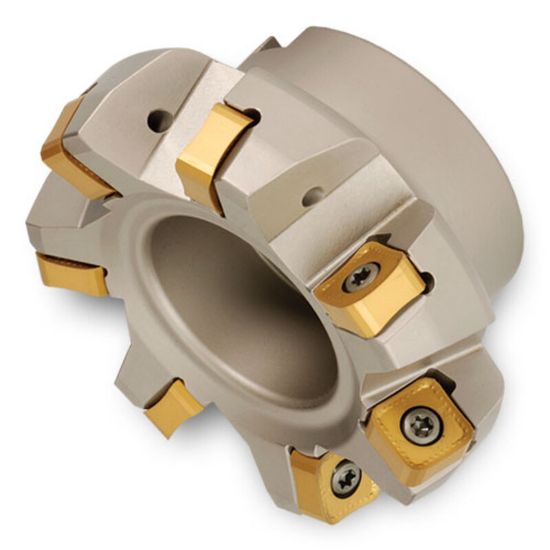

Picture of INGERSOLL DL5H-60R01 Milling Cutter 75.0° 6.000 Shell Arbor 1.5000 20 Flute 0.256 Max DOC 2.000 OAL

INGERSOLL DL5H-60R01 Milling Cutter 75.0° 6.000 Shell Arbor 1.5000 20 Flute 0.256 Max DOC 2.000 OAL

ANSI: DL5H-60R01

ISO: DL5H-60R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6343793
Delivery date: 3-5 days
$1,605.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Illinois
Insert Application Semi Finishing, Roughing
Insert Type Negative
Made In USA No
Application Face Milling
Package Size 1
Dimensional Specifications
Cut Dia Min 6.0000 152.40MM
Tool Material Steel
Overall Len 2.0000 50.80MM
Insert Size Ic 12
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 6.0000 152.40MM
Machine Side Connection Size 1.5000 38.10MM
Flutes/Inserts 20
Cut Dia Max 6.3000 160.02MM
Depth Of Cut Max 0.2560
Cutting & Machining Properties
Insert Style SN
Insert Shape/Cutter Pocket Shape Square
Coolant Thru No
