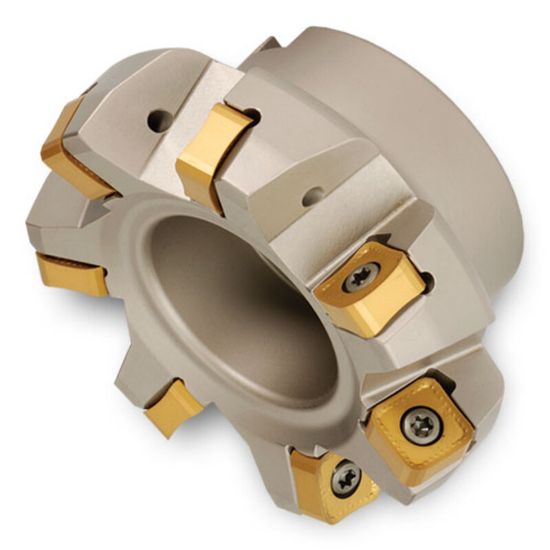

Picture of INGERSOLL DL5H-20R01 Milling Cutter 75.0° 2.000 Shell Arbor 0.7500 6 Flute Coolant 1.750 OAL

INGERSOLL DL5H-20R01 Milling Cutter 75.0° 2.000 Shell Arbor 0.7500 6 Flute Coolant 1.750 OAL

ANSI: DL5H-20R01

ISO: DL5H-20R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3025643
Delivery date: 3-5 days
$534.80

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Package Size 1
Insert/Tool Tool
Application Face Milling
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 12
Cut Dia Max 2.3000 58.42MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.7500 44.45MM
Cut Dia Min 2.0000 50.80MM
Cutter Dia 2.0000 50.80MM
Flutes/Inserts 6
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Square
Insert Style SN
