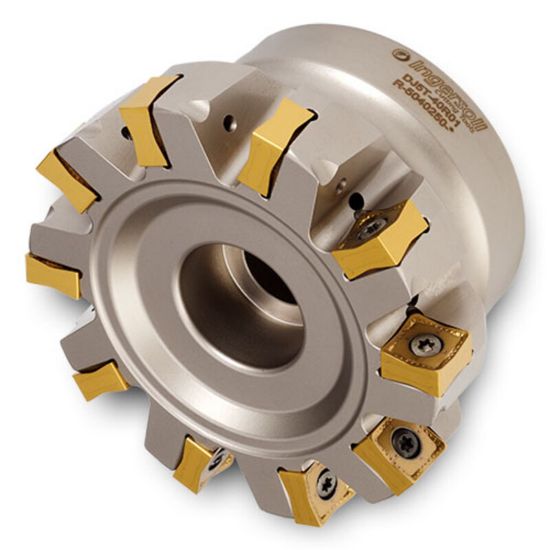

Picture of INGERSOLL DJ6T-80R01 Milling Cutter 90.0° 8.000 Shell Arbor 2.5000 14 Flute 0.47 Max DOC 2.375 OAL

INGERSOLL DJ6T-80R01 Milling Cutter 90.0° 8.000 Shell Arbor 2.5000 14 Flute 0.47 Max DOC 2.375 OAL

ANSI: DJ6T-80R01

ISO: DJ6T-80R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3029305
Delivery date: 3-5 days
$1,661.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Application Slot Milling, Side Milling, Face Milling
Insert/Tool Tool
Package Size 1
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 14
Cut Dia Max 8.0160 203.61MM
Overall Len 2.3750 60.33MM
Machine Side Connection Size 2.5000 63.50MM
Depth Of Cut Max 0.4700
Cut Dia Min 8.0000 203.20MM
Insert Size Ic 13
Cutter Dia 8.0000 203.20MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Square
Insert Style SN
