  • INGERSOLL DJ6T-40R01 Milling Cutter 90.0° 4.000 Shell Arbor 1.5000 8 Flute Coolant 0.47 Max DOC 2.375 OAL

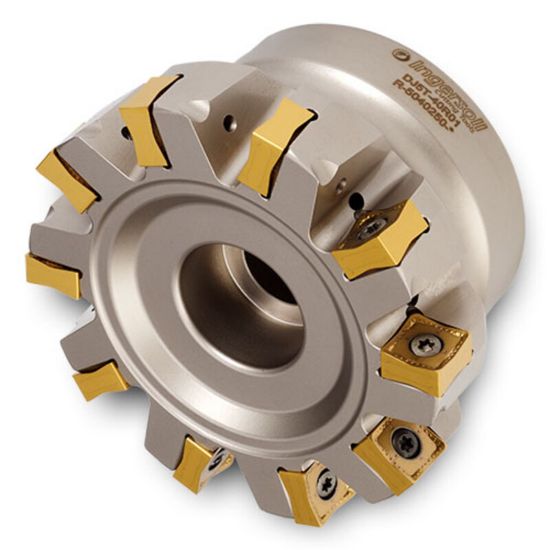

Picture of INGERSOLL DJ6T-40R01 Milling Cutter 90.0° 4.000 Shell Arbor 1.5000 8 Flute Coolant 0.47 Max DOC 2.375 OAL

INGERSOLL DJ6T-40R01 Milling Cutter 90.0° 4.000 Shell Arbor 1.5000 8 Flute Coolant 0.47 Max DOC 2.375 OAL

ANSI: DJ6T-40R01

ISO: DJ6T-40R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3029299
Delivery date: 3-5 days
$885.73

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Slot Milling, Face Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Depth Of Cut Max 0.4700
Machine Side Connection Size 1.5000 38.10MM
Flutes/Inserts 8
Cut Dia Max 4.0200 102.11MM
Cutter Dia 4.0000 101.60MM
Overall Len 2.3750 60.33MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Insert Size Ic 13
Cut Dia Min 4.0000 101.60MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Coolant Thru Yes
Insert Style SN
