  • INGERSOLL DJ6T-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 7 Flute Coolant 0.47 Max DOC 1.750 OAL

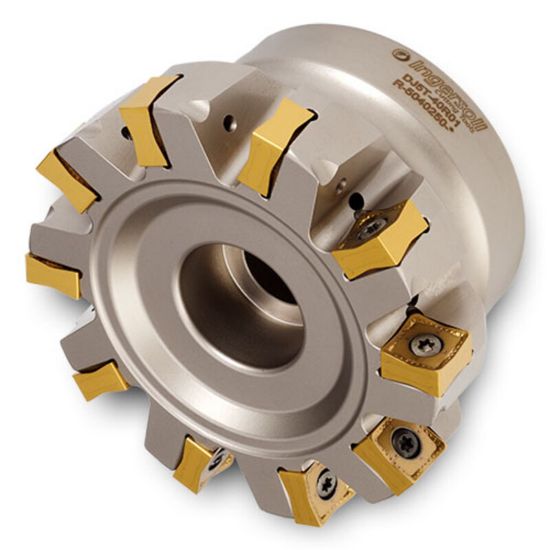

Picture of INGERSOLL DJ6T-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 7 Flute Coolant 0.47 Max DOC 1.750 OAL

INGERSOLL DJ6T-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 7 Flute Coolant 0.47 Max DOC 1.750 OAL

ANSI: DJ6T-30R01

ISO: DJ6T-30R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3029302
Delivery date: 3-5 days
$719.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling, Slot Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 13
Flutes/Inserts 7
Depth Of Cut Max 0.4700
Cut Dia Max 3.0210 76.73MM
Overall Len 1.7500 44.45MM
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Machine Side Connection Size 1.0000 25.40MM
Cutter Dia 3.0000 76.20MM
Cutting & Machining Properties
Insert Style SN
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Square
