  • INGERSOLL DJ6T-25R01 Milling Cutter 90.0° 2.500 Shell Arbor 0.7500 6 Flute Coolant 0.47 Max DOC 1.570 OAL

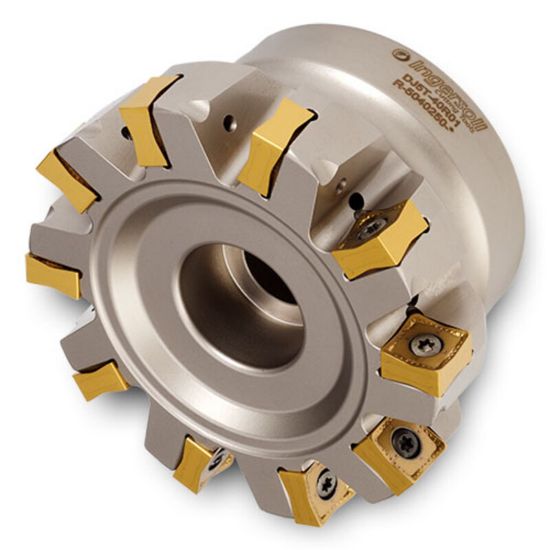

Picture of INGERSOLL DJ6T-25R01 Milling Cutter 90.0° 2.500 Shell Arbor 0.7500 6 Flute Coolant 0.47 Max DOC 1.570 OAL

INGERSOLL DJ6T-25R01 Milling Cutter 90.0° 2.500 Shell Arbor 0.7500 6 Flute Coolant 0.47 Max DOC 1.570 OAL

ANSI: DJ6T-25R01

ISO: DJ6T-25R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3029301
Delivery date: 3-5 days
$617.87

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Face Milling, Slot Milling, Side Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Insert Type Negative
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Tool Material Steel
Overall Len 1.5700 39.88MM
Insert Size Ic 13
Flutes/Inserts 6
Cut Dia Min 2.5000 63.50MM - 2-1/2
Cut Dia Max 2.5230 64.08MM
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.4700
Cutter Dia 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Insert Style SN
Insert Shape/Cutter Pocket Shape Square
Coolant Thru Yes
