  • INGERSOLL DJ6T-20R01 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 5 Flute Coolant 0.47 Max DOC 1.570 OAL

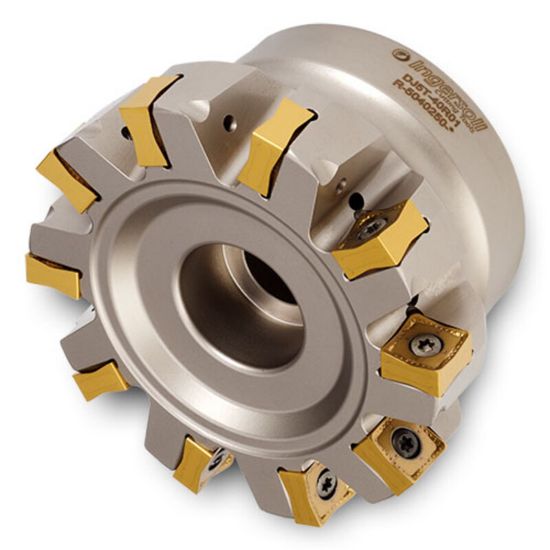

Picture of INGERSOLL DJ6T-20R01 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 5 Flute Coolant 0.47 Max DOC 1.570 OAL

INGERSOLL DJ6T-20R01 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 5 Flute Coolant 0.47 Max DOC 1.570 OAL

ANSI: DJ6T-20R01

ISO: DJ6T-20R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3029300
Delivery date: 3-5 days
$507.73

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Slot Milling
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cut Dia Min 2.0000 50.80MM
Depth Of Cut Max 0.4700
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Overall Len 1.5700 39.88MM
Flutes/Inserts 5
Cutter Dia 2.0000 50.80MM
Insert Size Ic 13
Cut Dia Max 2.0250 51.44MM
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Insert Style SN
Insert Shape/Cutter Pocket Shape Square
Coolant Thru Yes
