  • INGERSOLL DJ6P-60R01 Milling Cutter 90.0° 6.000 Shell Arbor 1.5000 12 Flute 0.362 Max DOC 2.000 OAL

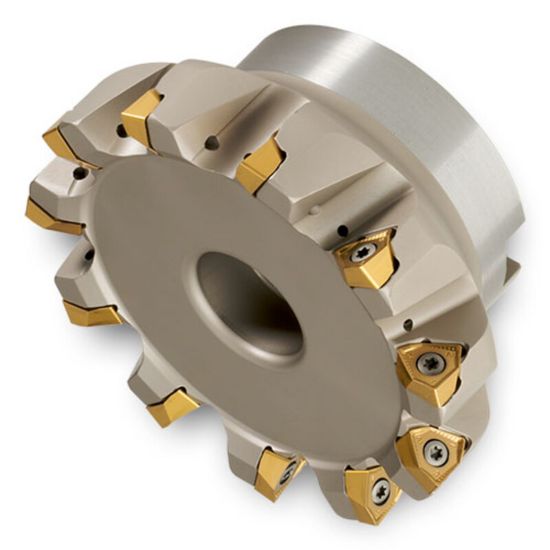

Picture of INGERSOLL DJ6P-60R01 Milling Cutter 90.0° 6.000 Shell Arbor 1.5000 12 Flute 0.362 Max DOC 2.000 OAL

INGERSOLL DJ6P-60R01 Milling Cutter 90.0° 6.000 Shell Arbor 1.5000 12 Flute 0.362 Max DOC 2.000 OAL

ANSI: DJ6P-60R01

ISO: DJ6P-60R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3031741
Delivery date: 3-5 days
$1,325.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Application Side Milling, Face Milling
Insert/Tool Tool
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Depth Of Cut Max 0.3620
Cut Dia Min 6.0000 152.40MM
Flutes/Inserts 12
Cut Dia Max 6.0000 152.40MM
Tool Material Steel
Insert Size Ic 13
Cutter Dia 6.0000 152.40MM
Machine Side Connection Size 1.5000 38.10MM
Cutting & Machining Properties
Insert Style WN
Insert Shape/Cutter Pocket Shape Trigon
Coolant Thru No
