  • INGERSOLL DJ6P-20R01 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 4 Flute Coolant 0.362 Max DOC 1.570 OAL

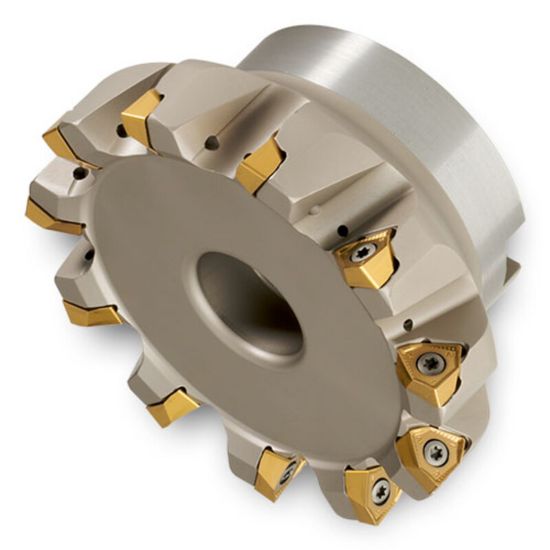

Picture of INGERSOLL DJ6P-20R01 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 4 Flute Coolant 0.362 Max DOC 1.570 OAL

INGERSOLL DJ6P-20R01 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 4 Flute Coolant 0.362 Max DOC 1.570 OAL

ANSI: DJ6P-20R01

ISO: DJ6P-20R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3031737
Delivery date: 3-5 days
$545.07

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Illinois
Application Face Milling, Side Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Insert Type Negative
Made In USA No
Dimensional Specifications
Tool Material Steel
Overall Len 1.5700 39.88MM
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Insert Size Ic 13
Cutter Dia 2.0000 50.80MM
Depth Of Cut Max 0.3620
Machine Side Connection Size 0.7500 19.05MM
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Trigon
Coolant Thru Yes
Insert Style WN
