  • INGERSOLL DJ5P-40R02 Milling Cutter 90.0° 4.000 Shell Arbor 1.5000 11 Flute Coolant 0.362 Max DOC 2.375 OAL

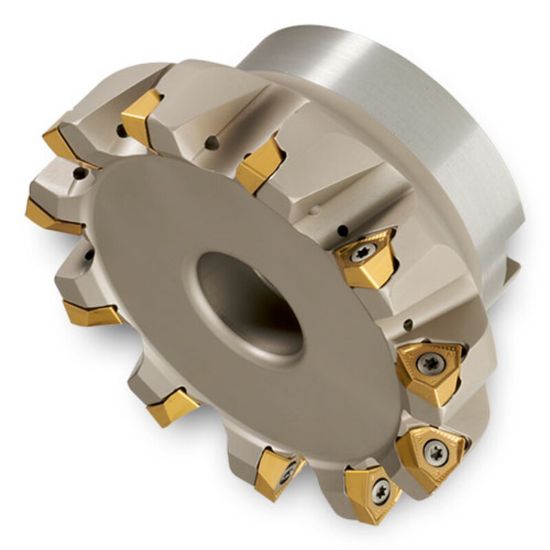

Picture of INGERSOLL DJ5P-40R02 Milling Cutter 90.0° 4.000 Shell Arbor 1.5000 11 Flute Coolant 0.362 Max DOC 2.375 OAL

INGERSOLL DJ5P-40R02 Milling Cutter 90.0° 4.000 Shell Arbor 1.5000 11 Flute Coolant 0.362 Max DOC 2.375 OAL

ANSI: DJ5P-40R02

ISO: DJ5P-40R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3070010
Delivery date: 3-5 days
$1,166.67

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Insert Size Ic 13
Machine Side Connection Size 1.5000 38.10MM
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 4.0000 101.60MM
Flutes/Inserts 11
Depth Of Cut Max 0.3620
Tool Material Steel
Cutter Dia 4.0000 101.60MM
Overall Len 2.3750 60.33MM
Cut Dia Max 4.0000 101.60MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Trigon
Insert Style WN
Coolant Thru Yes
