  • INGERSOLL DJ5P-20R01 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 5 Flute Coolant 0.362 Max DOC 1.570 OAL

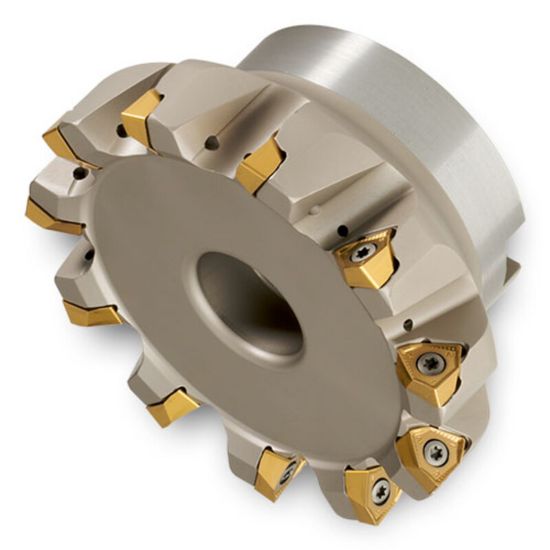

Picture of INGERSOLL DJ5P-20R01 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 5 Flute Coolant 0.362 Max DOC 1.570 OAL

INGERSOLL DJ5P-20R01 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 5 Flute Coolant 0.362 Max DOC 1.570 OAL

ANSI: DJ5P-20R01

ISO: DJ5P-20R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3070000
Delivery date: 3-5 days
$587.07

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Face Milling, Side Milling
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Insert Type Negative
Made In USA No
Dimensional Specifications
Cutter Dia 2.0000 50.80MM
Depth Of Cut Max 0.3620
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 5
Insert Size Ic 13
Tool Material Steel
Overall Len 1.5700 39.88MM
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Trigon
Insert Style WN
