  • INGERSOLL DJ5F-40R01 Milling Cutter 90.0° 4.000 Shell Arbor 1.5000 11 Flute Coolant 0.244 Max DOC 2.375 OAL

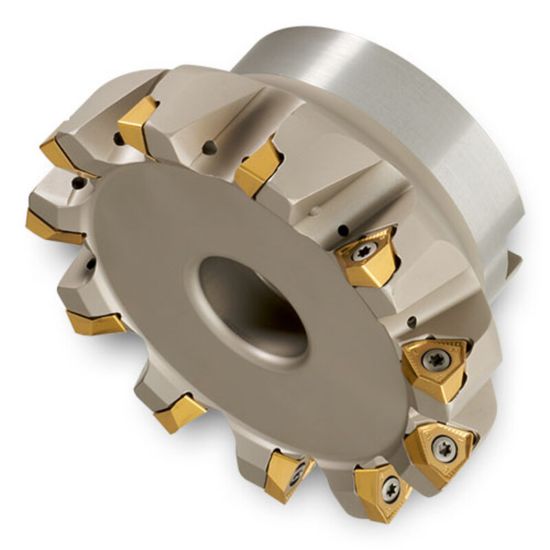

Picture of INGERSOLL DJ5F-40R01 Milling Cutter 90.0° 4.000 Shell Arbor 1.5000 11 Flute Coolant 0.244 Max DOC 2.375 OAL

INGERSOLL DJ5F-40R01 Milling Cutter 90.0° 4.000 Shell Arbor 1.5000 11 Flute Coolant 0.244 Max DOC 2.375 OAL

ANSI: DJ5F-40R01

ISO: DJ5F-40R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3070007
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Package Size 1
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Flutes/Inserts 11
Cut Dia Max 4.0000 101.60MM
Machine Side Connection Size 1.5000 38.10MM
Cutter Dia 4.0000 101.60MM
Overall Len 2.3750 60.33MM
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 9
Cut Dia Min 4.0000 101.60MM
Depth Of Cut Max 0.2440
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Trigon
Insert Style WN
