  • INGERSOLL DJ5F-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 7 Flute Coolant 0.244 Max DOC 1.750 OAL

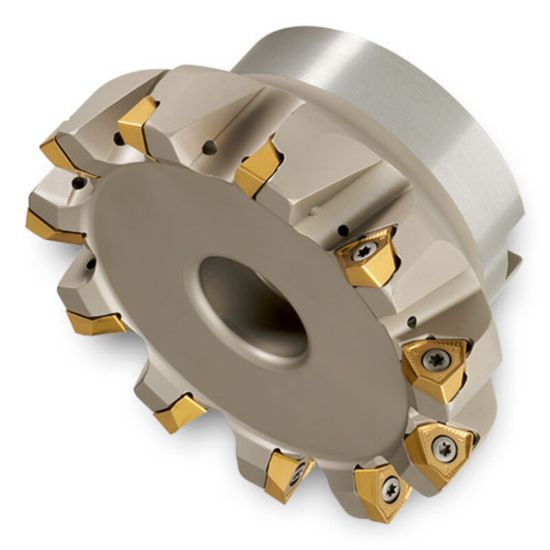

Picture of INGERSOLL DJ5F-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 7 Flute Coolant 0.244 Max DOC 1.750 OAL

INGERSOLL DJ5F-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 7 Flute Coolant 0.244 Max DOC 1.750 OAL

ANSI: DJ5F-30R01

ISO: DJ5F-30R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3031736
Delivery date: 3-5 days
$718.67

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Insert/Tool Tool
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Cutter Dia 3.0000 76.20MM
Overall Len 1.7500 44.45MM
Cut Dia Max 3.0000 76.20MM
Depth Of Cut Max 0.2440
Tool Material Steel
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 9
Flutes/Inserts 7
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Trigon
Insert Style WN
