  • INGERSOLL DJ5F-25R01 Milling Cutter 90.0° 2.500 Shell Arbor 0.7500 6 Flute Coolant 0.244 Max DOC 1.570 OAL

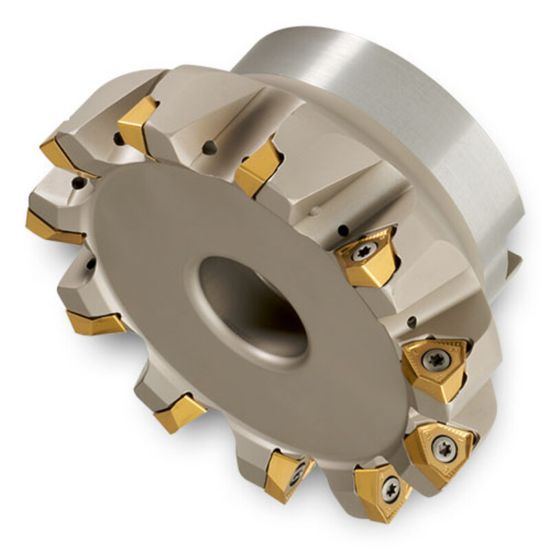

Picture of INGERSOLL DJ5F-25R01 Milling Cutter 90.0° 2.500 Shell Arbor 0.7500 6 Flute Coolant 0.244 Max DOC 1.570 OAL

INGERSOLL DJ5F-25R01 Milling Cutter 90.0° 2.500 Shell Arbor 0.7500 6 Flute Coolant 0.244 Max DOC 1.570 OAL

ANSI: DJ5F-25R01

ISO: DJ5F-25R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3031735
Delivery date: 3-5 days
$618.80

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Insert Application Roughing, Semi Finishing
Package Size 1
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Cut Dia Min 2.5000 63.50MM - 2-1/2
Flutes/Inserts 6
Insert Size Ic 9
Cut Dia Max 2.5000 63.50MM - 2-1/2
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.2440
Cutter Dia 2.5000 63.50MM - 2-1/2
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.5700 39.88MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Trigon
Insert Style WN
