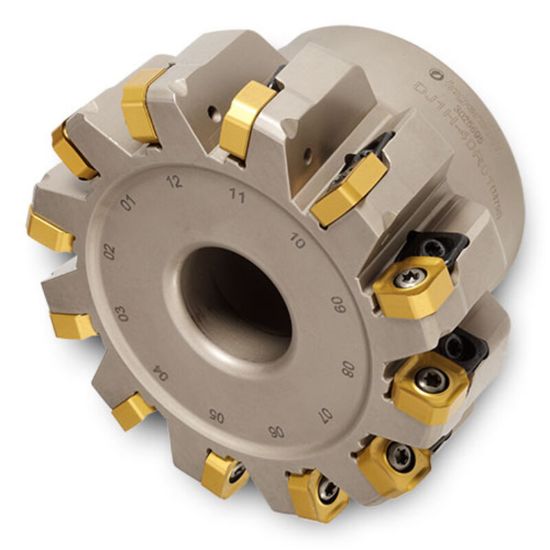

Picture of INGERSOLL DJ1H-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 4 Flute 0.04 Max DOC 1.750 OAL

INGERSOLL DJ1H-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 4 Flute 0.04 Max DOC 1.750 OAL

ANSI: DJ1H-30R01

ISO: DJ1H-30R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3029784
Delivery date: 3-5 days
$930.53

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Illinois
Insert Application Semi Finishing, Roughing
Application Face Milling, Micro Finishing
Insert Type Negative
Made In USA No
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Depth Of Cut Max 0.0400
Tool Material Steel
Overall Len 1.7500 44.45MM
Cutter Dia 3.0000 76.20MM
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 4
Insert Size Ic 11
Cutting & Machining Properties
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Coolant Thru No
