  • INGERSOLL DG5P-40R01 Milling Cutter 4.000 Shell Arbor 1.5000 7 Flute Coolant 0.0787 Max DOC 2.375 OAL

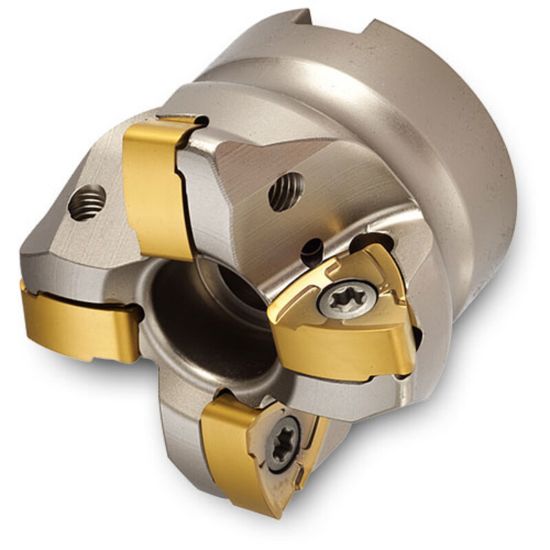

Picture of INGERSOLL DG5P-40R01 Milling Cutter 4.000 Shell Arbor 1.5000 7 Flute Coolant 0.0787 Max DOC 2.375 OAL

INGERSOLL DG5P-40R01 Milling Cutter 4.000 Shell Arbor 1.5000 7 Flute Coolant 0.0787 Max DOC 2.375 OAL

ANSI: DG5P-40R01

ISO: DG5P-40R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2912616
Delivery date: 3-5 days
$868.93

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert/Tool Tool
Application Ramp Milling, Slot Milling, Copy Milling, Feed Milling, Face Milling
Insert Application General Purpose
Insert Type Negative
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cut Dia Max 4.0000 101.60MM
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 4.0000 101.60MM
Overall Len 2.3750 60.33MM
Depth Of Cut Max 0.0787
Tool Material Steel
Cut Dia Min 3.2120 81.58MM
Machine Side Connection Size 1.5000 38.10MM
Flutes/Inserts 7
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Trigon
Max Ramp Angle 0.30°
