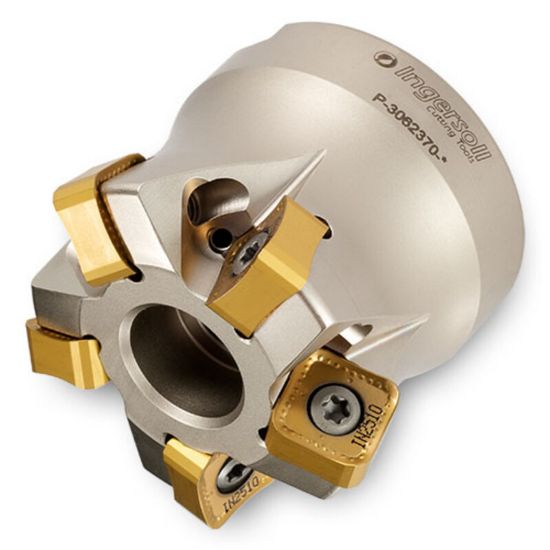

Picture of INGERSOLL DD6H-60R01 Milling Cutter 6.000 Shell Arbor 1.5000 13 Flute 0.065 Max DOC 2.375 OAL

INGERSOLL DD6H-60R01 Milling Cutter 6.000 Shell Arbor 1.5000 13 Flute 0.065 Max DOC 2.375 OAL

ANSI: DD6H-60R01

ISO: DD6H-60R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2904107
Delivery date: 3-5 days
$1,549.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Copy Milling, Feed Milling, Face Milling
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Package Size 1
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Depth Of Cut Max 0.0650
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 6.0000 152.40MM
Machine Side Connection Size 1.5000 38.10MM
Overall Len 2.3750 60.33MM
Cut Dia Min 5.2530 133.43MM
Tool Material Steel
Flutes/Inserts 13
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Coolant Thru No
Max Ramp Angle 0.30°
