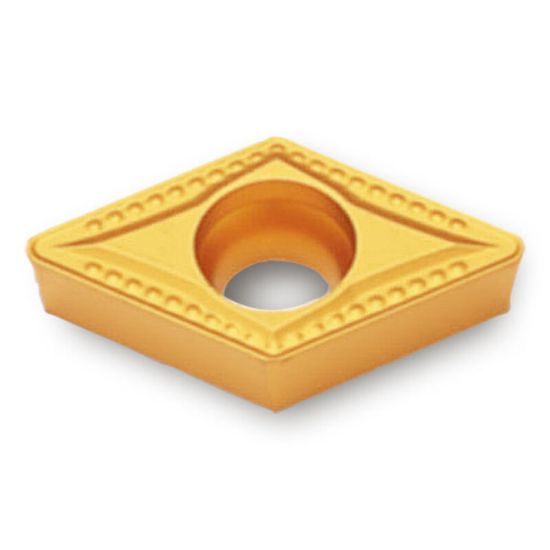

INGERSOLL DCMT32.52MT TT7025 Turning Insert 55.0° TiCN + Al2O3 + TiN 0.031 Corner Radius

ANSI: DCMT32.52MT TT7025

ISO: DCMT11T308MTTT7025

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6189111
Delivery date: 3-5 days
$10.27

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

A best CVD coated turning grade for low speed and interrupted machining of cast irons especially good performance in ductile cast iron machining

Products specifications
Attribute name Attribute value
General Product Information
Grade TT7025
Insert Application Roughing, Semi Finishing
Application Turning Insert
Made In USA No
Insert/Tool Insert
Coating TiCN + Al2O3 + TiN
Package Size 10
Insert Type Positive
Shipping State Illinois
Dimensional Specifications
Cut Rating Ductile Iron, Gray Iron
Insert Size Ic 11 "32"
Corner Radius 0.0310 0.79MM
Cutting & Machining Properties
Insert Style DC
Cutting Edge Mat Carbide
Insert Shape/Cutter Pocket Shape 55.0°
