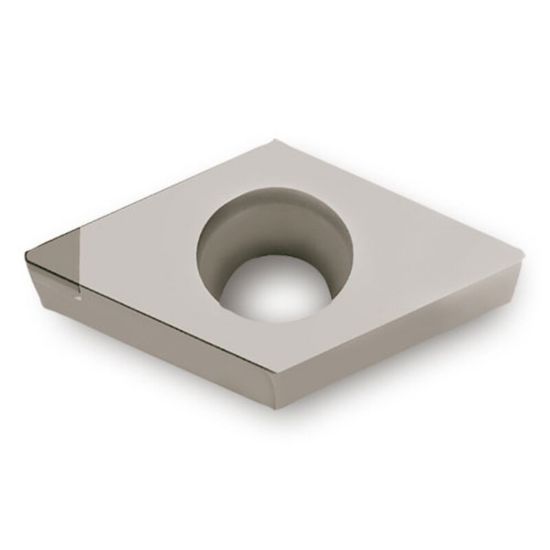

INGERSOLL DCGW21.52LS2 TB730 Turning Insert 55.0° 0.031 Corner Radius

ANSI: DCGW21.52LS2 TB730

ISO: DCGW070208LS2 TB730

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5403138
Delivery date: 3-5 days
$86.05

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Grade and Coating Description

High content CBN grade with high hardness and high facture toughness for high speed turning of cast irons & hard materials turning with continuous and interrupted cut and sintered metal machining

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Package Size 10
Insert Type Positive
Shipping State Illinois
Application Turning Insert
Grade TB730
Made In USA No
Insert/Tool Insert
Dimensional Specifications
Insert Size Ic 07 "21"
Corner Radius 0.0310 0.79MM
Cut Rating <53HRC Steel, Gray Iron
Cutting & Machining Properties
Insert Style DC
Insert Shape/Cutter Pocket Shape 55.0°
Cutting Edge Mat CBN
