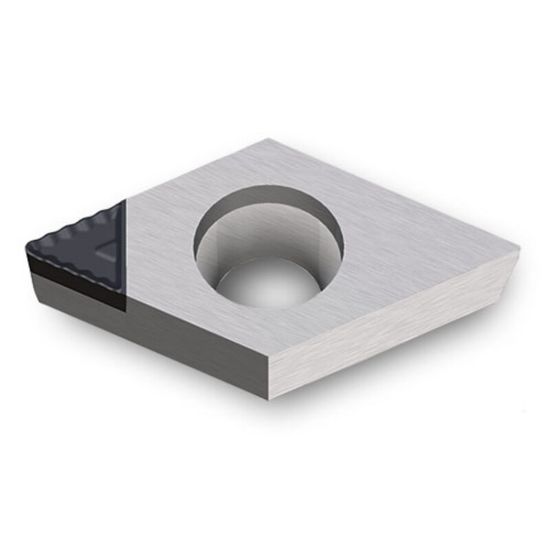

Picture of INGERSOLL DCGT21.50.5CB KP300 Turning Insert 55.0° 0.008 Corner Radius

INGERSOLL DCGT21.50.5CB KP300 Turning Insert 55.0° 0.008 Corner Radius

ANSI: DCGT21.50.5CB KP300

ISO: DCGT070202CB KP300

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5402910
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

PCD stands for “Poly Crystalline Diamond”, the hardest available cutting material. PCD is a synthetic diamond produced by sintering together selected diamond particles with a metal matrix at high temperature and high pressure. The result is 90-95% diamond content material that reaches a hardness close to 6000 HV. In addition, the small amount of the binder gives the material additional toughness that makes it an efficient cutting material.

Grade and Coating Description

PCD grade with medium size of PCD for general turning and milling of non-ferrous materials with excellent combination of wear resistance and good toughness

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Insert Application Finishing
Insert Type Positive
Grade KP300
Package Size 10
Application Turning Insert
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 07 "21"
Corner Radius 0.0080 0.20MM
Cut Rating Aluminum, Graphite
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
Cutting Edge Mat PCD
