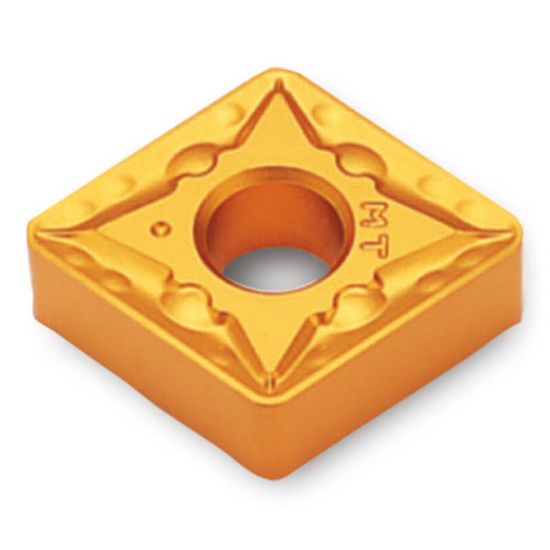

INGERSOLL CNMG431MTCT3000 Turning Insert 80.0° 0.016 Corner Radius

ANSI: CNMG431MTCT3000

ISO: CNMG120404MTCT3000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5740043
Delivery date: 3-5 days
$7.60

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

Cermet grade for turning, grooving & parting of alloy steels & stainless steels with high surface quality and long tool life due to high wear resistance and low coefficient of friction

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Grade CT3000
Insert Application Finishing
Package Size 10
Insert Type Negative
Shipping State Illinois
Application Turning Insert
Made In USA No
Dimensional Specifications
Insert Size Ic 12 "43"
Cut Rating <48HRC Steel, Stainless Steel
Corner Radius 0.0160 0.41MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Cutting Edge Mat Cermet
Insert Style CN
