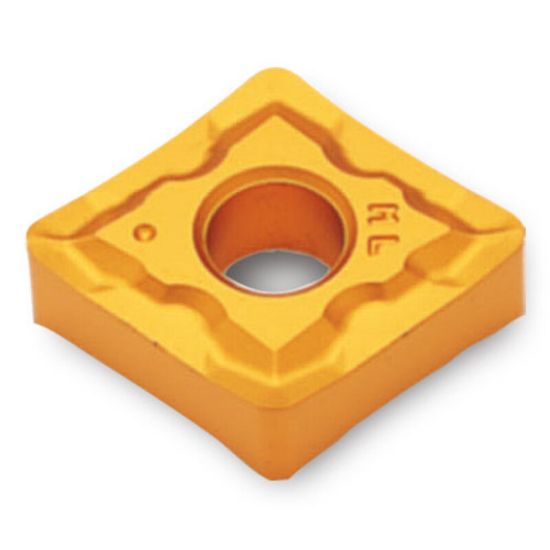

INGERSOLL CNMG431MLCT3000 Turning Insert 80.0° 0.016 Corner Radius

ANSI: CNMG431MLCT3000

ISO: CNMG120404MLCT3000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5780212
Delivery date: 3-5 days
$7.60

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

Cermet grade for turning, grooving & parting of alloy steels & stainless steels with high surface quality and long tool life due to high wear resistance and low coefficient of friction

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Insert Type Negative
Made In USA No
Shipping State Illinois
Application Turning Insert
Package Size 10
Grade CT3000
Insert Application Finishing
Dimensional Specifications
Insert Size Ic 12 "43"
Corner Radius 0.0160 0.41MM
Cut Rating <48HRC Steel, Stainless Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style CN
Cutting Edge Mat Cermet
