Picture of INGERSOLL CNGA433WZ-LS2 TB670 Turning Insert 80.0° 0.047 Corner Radius

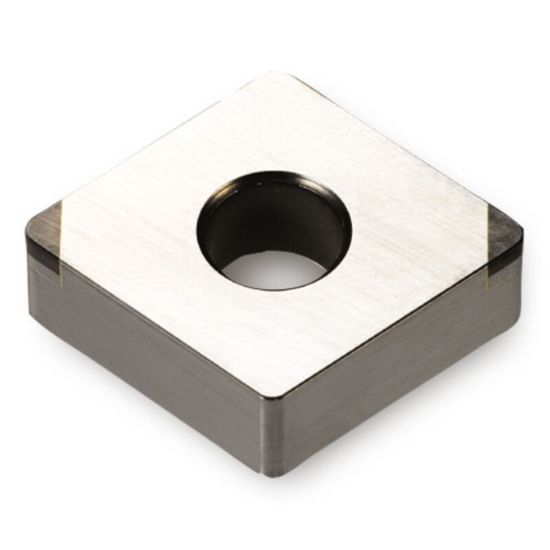

INGERSOLL CNGA433WZ-LS2 TB670 Turning Insert 80.0° 0.047 Corner Radius

ANSI: CNGA433WZ-LS2 TB670

ISO: CNGA120412WZ-LS2 TB670

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5403035
Delivery date: 3-5 days
$79.52

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Grade and Coating Description

CBN grade good for continuous and interrupted machining of hardened steels with excellent combination of wear resistance and toughness

Products specifications
Attribute name Attribute value
General Product Information
Package Size 10
Insert/Tool Insert
Insert Application Roughing
Application Turning Insert
Made In USA No
Insert Type Negative
Shipping State Illinois
Grade TB670
Dimensional Specifications
Insert Size Ic 12 "43"
Cut Rating >50HRC Steel, Gray Iron
Corner Radius 0.0470 1.19MM
Cutting & Machining Properties
Insert Style CN
Cutting Edge Mat CBN
Insert Shape/Cutter Pocket Shape 80.0°
