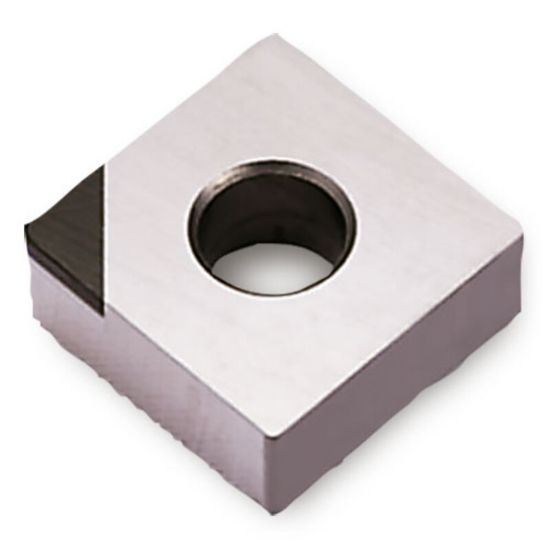

Picture of INGERSOLL CNGA431LS TB7015 Turning Insert 80.0° 0.016 Corner Radius

INGERSOLL CNGA431LS TB7015 Turning Insert 80.0° 0.016 Corner Radius

ANSI: CNGA431LS TB7015

ISO: CNGA120404LS TB7015

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6210510
Delivery date: 3-5 days
$51.52

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Grade and Coating Description

General machining of gray cast iron. Turning and milling of gray cast iron. Severe interrupt turning and milling of hardened steel.

Products specifications
Attribute name Attribute value
General Product Information
Application Turning Insert
Made In USA No
Insert Type Negative
Shipping State Illinois
Insert/Tool Insert
Grade TB7015
Insert Application Finishing
Package Size 10
Dimensional Specifications
Corner Radius 0.0160 0.41MM
Insert Size Ic 12 "43"
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat CBN
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style CN
