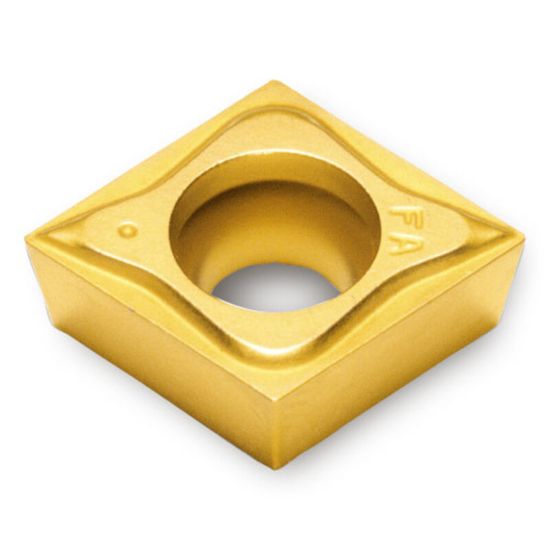

INGERSOLL CCMT32.52FACT3000 Turning Insert 80.0° 0.031 Corner Radius

ANSI: CCMT32.52FACT3000

ISO: CCMT09T308FACT3000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5740174
Delivery date: 3-5 days
$7.17

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

Cermet grade for turning, grooving & parting of alloy steels & stainless steels with high surface quality and long tool life due to high wear resistance and low coefficient of friction

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Turning Insert
Made In USA No
Shipping State Illinois
Insert Type Positive
Insert/Tool Insert
Package Size 10
Grade CT3000
Dimensional Specifications
Insert Size Ic 09 "32"
Corner Radius 0.0310 0.79MM
Cut Rating <48HRC Steel, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat Cermet
Insert Style CC
Insert Shape/Cutter Pocket Shape 80.0°
