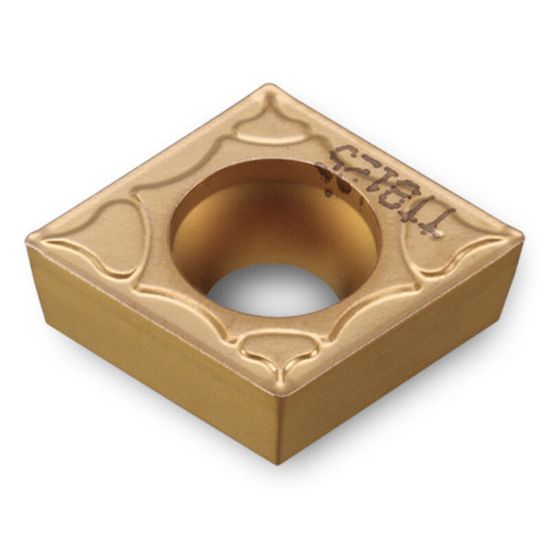

INGERSOLL CCMT32.51PCCT3000 Turning Insert 80.0° 0.016 Corner Radius

ANSI: CCMT32.51PCCT3000

ISO: CCMT09T304PCCT3000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5750023
Delivery date: 3-5 days
$7.17

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

Cermet grade for turning, grooving & parting of alloy steels & stainless steels with high surface quality and long tool life due to high wear resistance and low coefficient of friction

Products specifications
Attribute name Attribute value
General Product Information
Grade CT3000
Shipping State Illinois
Application Turning Insert
Made In USA No
Package Size 10
Insert/Tool Insert
Insert Application Finishing
Insert Type Positive
Dimensional Specifications
Cut Rating <48HRC Steel, Stainless Steel
Insert Size Ic 09 "32"
Corner Radius 0.0160 0.41MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style CC
Cutting Edge Mat Cermet
