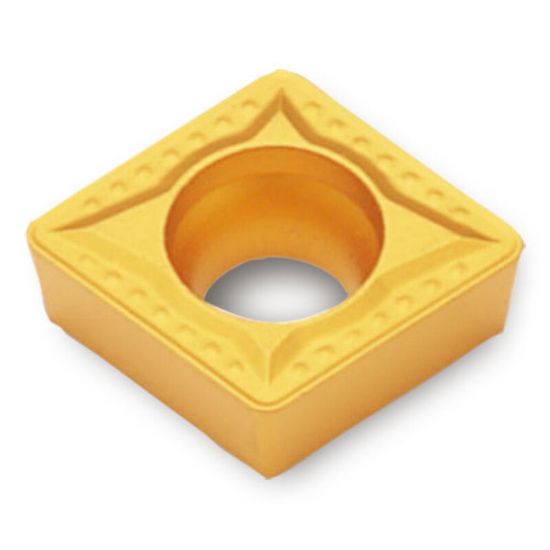

INGERSOLL CCMT21.52MT PV3010 Turning Insert 80.0° TiN 0.031 Corner Radius

ANSI: CCMT21.52MT PV3010

ISO: CCMT060208MT PV3010

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5516440
Delivery date: 3-5 days
$7.47

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

PVD coated Cermet grade with excellent wear resistance and low coefficient of friction for high speed finish turning of steels, stainless steels and cast irons with long tool life

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Made In USA No
Shipping State Illinois
Insert Application Semi Finishing, Roughing
Application Turning Insert
Grade PV3010
Package Size 10
Insert/Tool Insert
Coating TiN
Dimensional Specifications
Corner Radius 0.0310 0.79MM
Insert Size Ic 06 "21"
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat Cermet
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style CC
