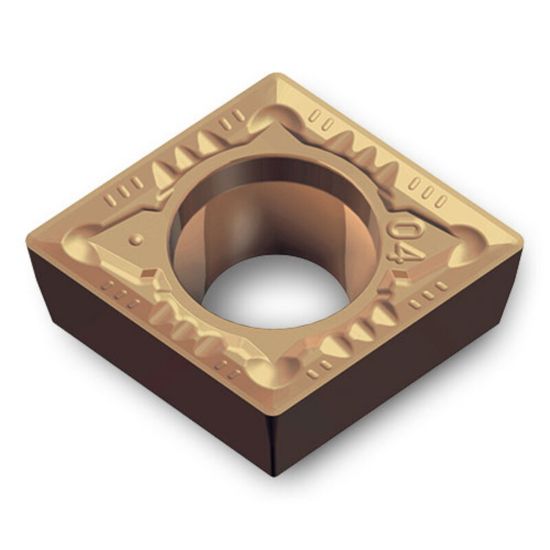

Picture of INGERSOLL CCMT21.50.5FM PV3010 Turning Insert 80.0° TiN 0.008 Corner Radius

INGERSOLL CCMT21.50.5FM PV3010 Turning Insert 80.0° TiN 0.008 Corner Radius

ANSI: CCMT21.50.5FM PV3010

ISO: CCMT060202FM PV3010

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6155665
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

PVD coated Cermet grade with excellent wear resistance and low coefficient of friction for high speed finish turning of steels, stainless steels and cast irons with long tool life

Products specifications
Attribute name Attribute value
General Product Information
Package Size 10
Insert/Tool Insert
Shipping State Illinois
Insert Application Finishing
Insert Type Positive
Coating TiN
Application Turning Insert
Grade PV3010
Made In USA No
Dimensional Specifications
Corner Radius 0.0080 0.20MM
Insert Size Ic 06 "21"
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutting & Machining Properties
Insert Style CC
Insert Shape/Cutter Pocket Shape 80.0°
Cutting Edge Mat Cermet
