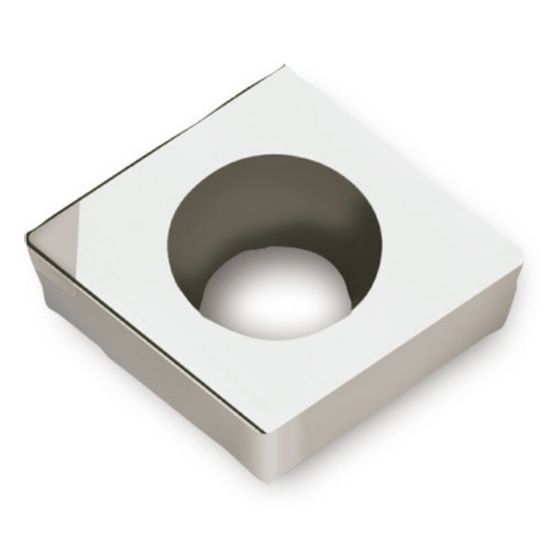

Picture of INGERSOLL CCGW32.52WZ-LS TB650 Turning Insert 80.0° 0.031 Corner Radius

INGERSOLL CCGW32.52WZ-LS TB650 Turning Insert 80.0° 0.031 Corner Radius

ANSI: CCGW32.52WZ-LS TB650

ISO: CCGW09T308WZ-LS TB650

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5401602
Delivery date: 3-5 days
$47.69

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Grade and Coating Description

Medium CBN grade good for continuous to light interrupted machining of hardened steels with high wear resistance and moderate fracture toughness

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Turning Insert
Made In USA No
Grade TB650
Package Size 10
Insert/Tool Insert
Insert Type Positive
Shipping State Illinois
Dimensional Specifications
Corner Radius 0.0310 0.79MM
Cut Rating >50HRC Steel, Gray Iron
Insert Size Ic 09 "32"
Cutting & Machining Properties
Cutting Edge Mat CBN
Insert Style CC
Insert Shape/Cutter Pocket Shape 80.0°
