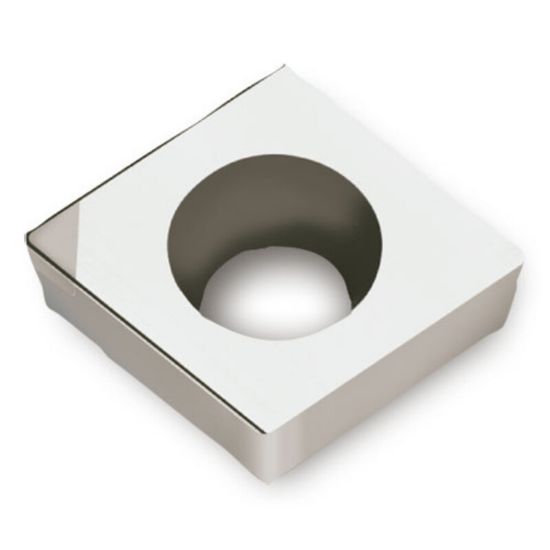

Picture of INGERSOLL CCGW32.51LS KB90 Turning Insert 80.0° 0.016 Corner Radius

INGERSOLL CCGW32.51LS KB90 Turning Insert 80.0° 0.016 Corner Radius

ANSI: CCGW32.51LS KB90

ISO: CCGW09T304LS KB90

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5400904
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Grade and Coating Description

Solid CBN grade with excellent impact resistance for high speed machining of cast iron and rough to medium machining of hardened steels

Products specifications
Attribute name Attribute value
General Product Information
Application Turning Insert
Package Size 10
Insert/Tool Insert
Grade KB90
Insert Application Finishing
Insert Type Positive
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Rating Ductile Iron, Gray Iron
Insert Size Ic 09 "32"
Corner Radius 0.0160 0.41MM
Cutting & Machining Properties
Insert Style CC
Cutting Edge Mat CBN
Insert Shape/Cutter Pocket Shape 80.0°
