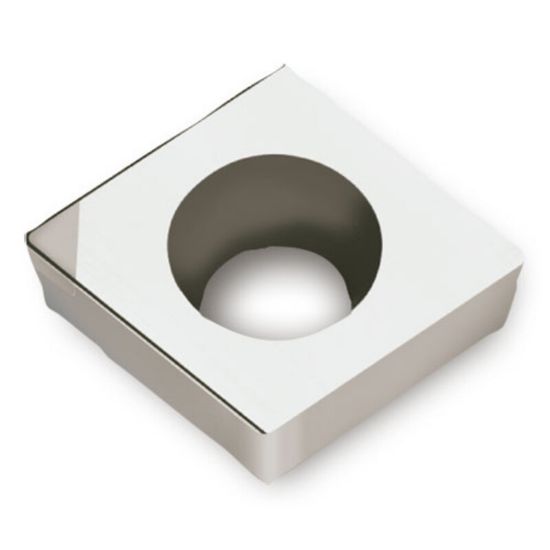

Picture of INGERSOLL CCGW21.52LS2 TB670 Turning Insert 80.0° 0.031 Corner Radius

INGERSOLL CCGW21.52LS2 TB670 Turning Insert 80.0° 0.031 Corner Radius

ANSI: CCGW21.52LS2 TB670

ISO: CCGW060208LS2 TB670

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5403026
Delivery date: 3-5 days
$79.61

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Grade and Coating Description

CBN grade good for continuous and interrupted machining of hardened steels with excellent combination of wear resistance and toughness

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Package Size 10
Insert Application Semi Finishing, Roughing
Insert/Tool Insert
Insert Type Positive
Grade TB670
Application Turning Insert
Made In USA No
Dimensional Specifications
Insert Size Ic 06 "21"
Corner Radius 0.0310 0.79MM
Cut Rating >50HRC Steel, Gray Iron
Cutting & Machining Properties
Insert Style CC
Insert Shape/Cutter Pocket Shape 80.0°
Cutting Edge Mat CBN
