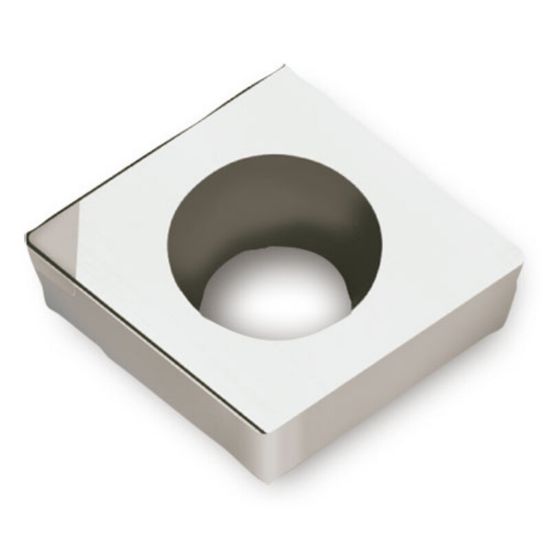

Picture of INGERSOLL CCGW21.50.5LS KB90 Turning Insert 80.0° 0.008 Corner Radius

INGERSOLL CCGW21.50.5LS KB90 Turning Insert 80.0° 0.008 Corner Radius

ANSI: CCGW21.50.5LS KB90

ISO: CCGW060202LS KB90

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5400899
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Grade and Coating Description

Solid CBN grade with excellent impact resistance for high speed machining of cast iron and rough to medium machining of hardened steels

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing
Insert Type Positive
Grade KB90
Package Size 10
Application Turning Insert
Made In USA No
Shipping State Illinois
Insert/Tool Insert
Dimensional Specifications
Corner Radius 0.0080 0.20MM
Insert Size Ic 06 "21"
Cut Rating Ductile Iron, Gray Iron
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style CC
Cutting Edge Mat CBN
