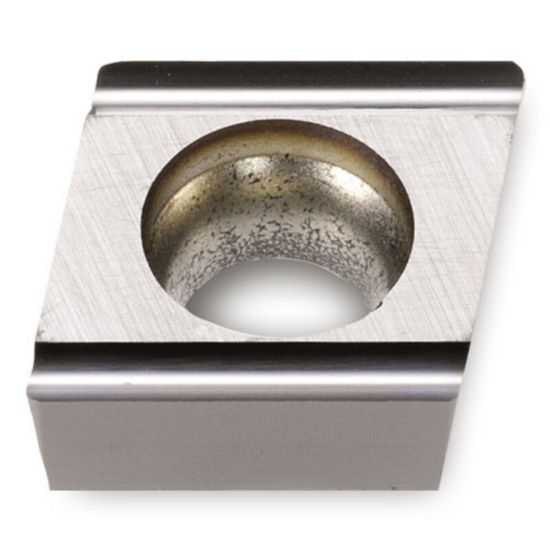

INGERSOLL CCET32.52L-GFCT3000 Turning Insert 80.0° 0.031 Corner Radius

ANSI: CCET32.52L-GFCT3000

ISO: CCET09T308L-GF CT3000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6136404
Delivery date: 3-5 days
$12.40

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

Cermet grade for turning, grooving & parting of alloy steels & stainless steels with high surface quality and long tool life due to high wear resistance and low coefficient of friction

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Grade CT3000
Insert Type Positive
Insert/Tool Insert
Insert Application Semi Finishing, Roughing
Application Turning Insert
Package Size 10
Dimensional Specifications
Insert Size Ic 09 "32"
Corner Radius 0.0310 0.79MM
Cut Rating <48HRC Steel, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat Cermet
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style CC
