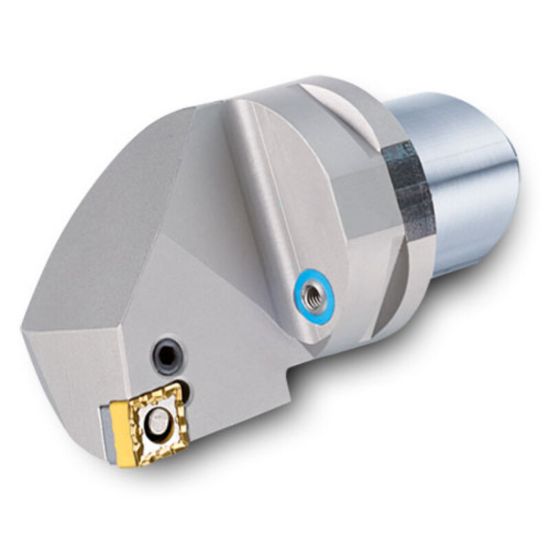

Picture of INGERSOLL C4-HCLNR27050-0904 Turning Stick Tool 80.0° Quick Change PSC "Capto Type" 1.574 Steel

INGERSOLL C4-HCLNR27050-0904 Turning Stick Tool 80.0° Quick Change PSC "Capto Type" 1.574 Steel

ANSI: C4-HCLNR27050-0904

ISO: C4-HCLNR27050-0904

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6113075
Delivery date: 3-5 days
$315.00

Features And Benefits

C-Adapter (ISO 26623-1) Quick change H-type holder for ISO turning Accepts 80° rhombic inserts

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 09 "32"
Shank/Pilot Dia 1.5748 40.00MM
Machine Side Connection Type PSC "Capt0 Type"
Machine Side Connection Size 1.5748 40.00MM
Overall Len 1.9685 50.00MM
Tool Material Steel
Lead Angle 95°
Cutting & Machining Properties
Insert Style CN
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
