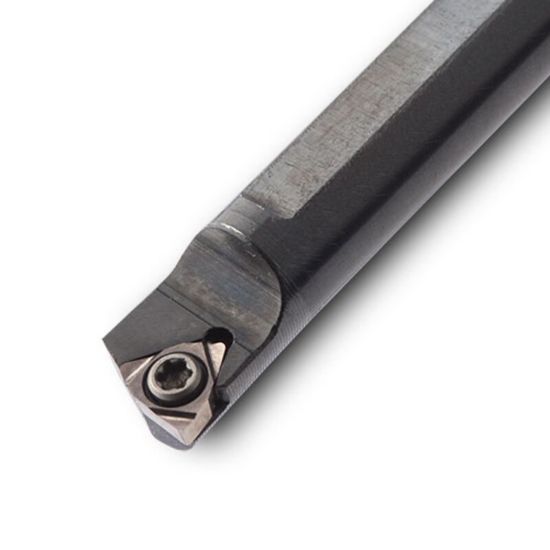

Picture of INGERSOLL C07K-SWUBL06-D08 Turning Boring Bar 80.0° Carbide Boring Bar 0.275 Carbide

INGERSOLL C07K-SWUBL06-D08 Turning Boring Bar 80.0° Carbide Boring Bar 0.275 Carbide

ANSI: C07K-SWUBL06-D08

ISO: C07K-SWUBL06-D08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3606243
Delivery date: 3-5 days
$197.87

Features And Benefits

Screw-held boring bar Accepts positive 5° clearance 80° trigon inserts

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Application Int.Turning
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Machine Side Connection Type Boring Bar
Min Bore 0.3150
Overall Len 4.9000 124.46MM
Insert Size Ic 06 "1.2"
Lead Angle 93°
Tool Material Carbide
Shank/Pilot Dia 0.2756 7.00MM
Machine Side Connection Size 0.2756 7.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Trigon
Inter/Extern Internal
Hand R/L Left
Insert Style WB
