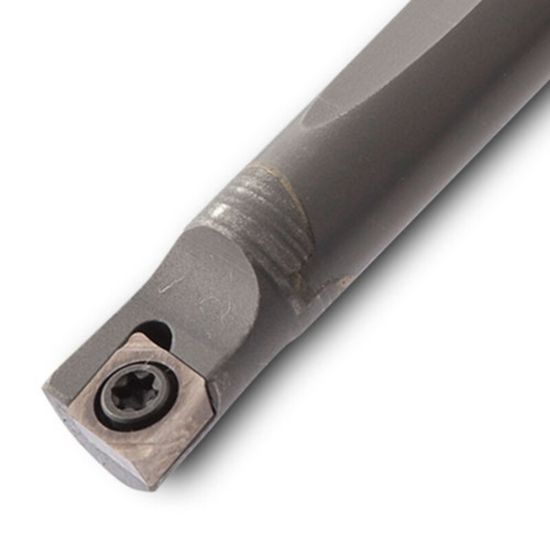

Picture of INGERSOLL C07K-SCLCL04-D08 Turning Boring Bar 80.0° Carbide Boring Bar 0.275 Carbide

INGERSOLL C07K-SCLCL04-D08 Turning Boring Bar 80.0° Carbide Boring Bar 0.275 Carbide

ANSI: C07K-SCLCL04-D08

ISO: C07K-SCLCL04-D08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3606221
Delivery date: 3-5 days
$197.87

Features And Benefits

Screw-held boring bar Accepts positive 5° clearance 80° rhombic inserts

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Type Positive
Application Int.Turning
Insert/Tool Tool
Insert Application General Purpose
Shipping State Illinois
Made In USA No
Dimensional Specifications
Tool Material Carbide
Overall Len 4.9000 124.46MM
Machine Side Connection Size 0.2756 7.00MM
Insert Size Ic 04 "1.4"
Lead Angle 95°
Shank/Pilot Dia 0.2756 7.00MM
Machine Side Connection Type Boring Bar
Min Bore 0.3150
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Left
Insert Style CC
Inter/Extern Internal
