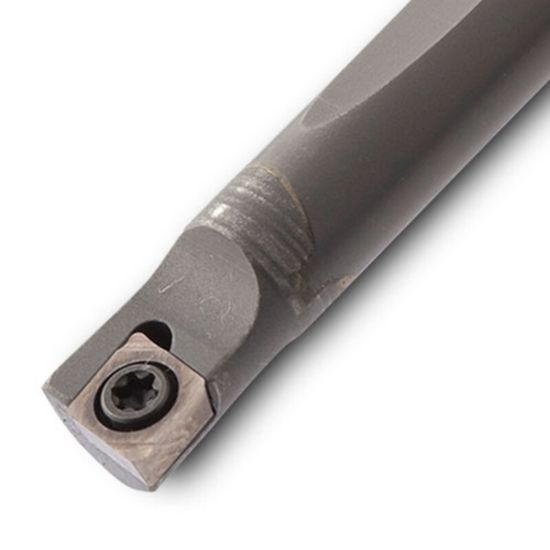

Picture of INGERSOLL C04G-SCLCR03-D05 Turning Boring Bar 80.0° Carbide Boring Bar 0.157 Carbide

INGERSOLL C04G-SCLCR03-D05 Turning Boring Bar 80.0° Carbide Boring Bar 0.157 Carbide

ANSI: C04G-SCLCR03-D05

ISO: C04G-SCLCR03-D05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3606214
Delivery date: 3-5 days
$182.93

Features And Benefits

Screw-held boring bar Accepts positive 5° clearance 80° rhombic inserts

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Int.Turning
Insert Type Positive
Package Size 1
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Carbide
Lead Angle 95°
Shank/Pilot Dia 0.1575 4.00MM
Insert Size Ic 03 "1.1"
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.1575 4.00MM
Overall Len 3.5000 88.90MM
Min Bore 0.1970
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
Inter/Extern Internal
Insert Style CC
