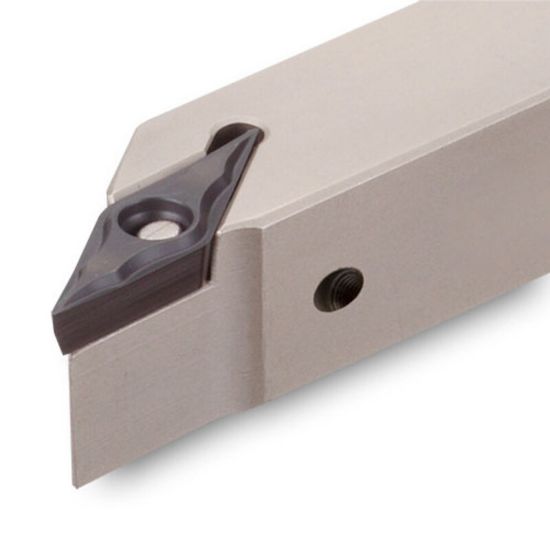

Picture of INGERSOLL BVJCR10-2C-SH Turning Stick Tool 35.0° Swiss Square 0.625 Steel

INGERSOLL BVJCR10-2C-SH Turning Stick Tool 35.0° Swiss Square 0.625 Steel

ANSI: BVJCR10-2C-SH

ISO: BVJCR10-2C-SH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3606631
Delivery date: 3-5 days
$150.27

Features And Benefits

Side-hook lever holder for external turning on Swiss-type lathes Accepts 35° rhombic inserts Insert lever can be accessed from both sides of holder

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert/Tool Tool
Insert Application General Purpose
Application Swiss, Ext.Turning
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.6250 15.88MM
Overall Len 5.0000 127.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Lead Angle 93°
Insert Size Ic 11 "21"
Clearance Angle 50.0°
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutting & Machining Properties
Insert Style VC
Hand R/L Right
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
